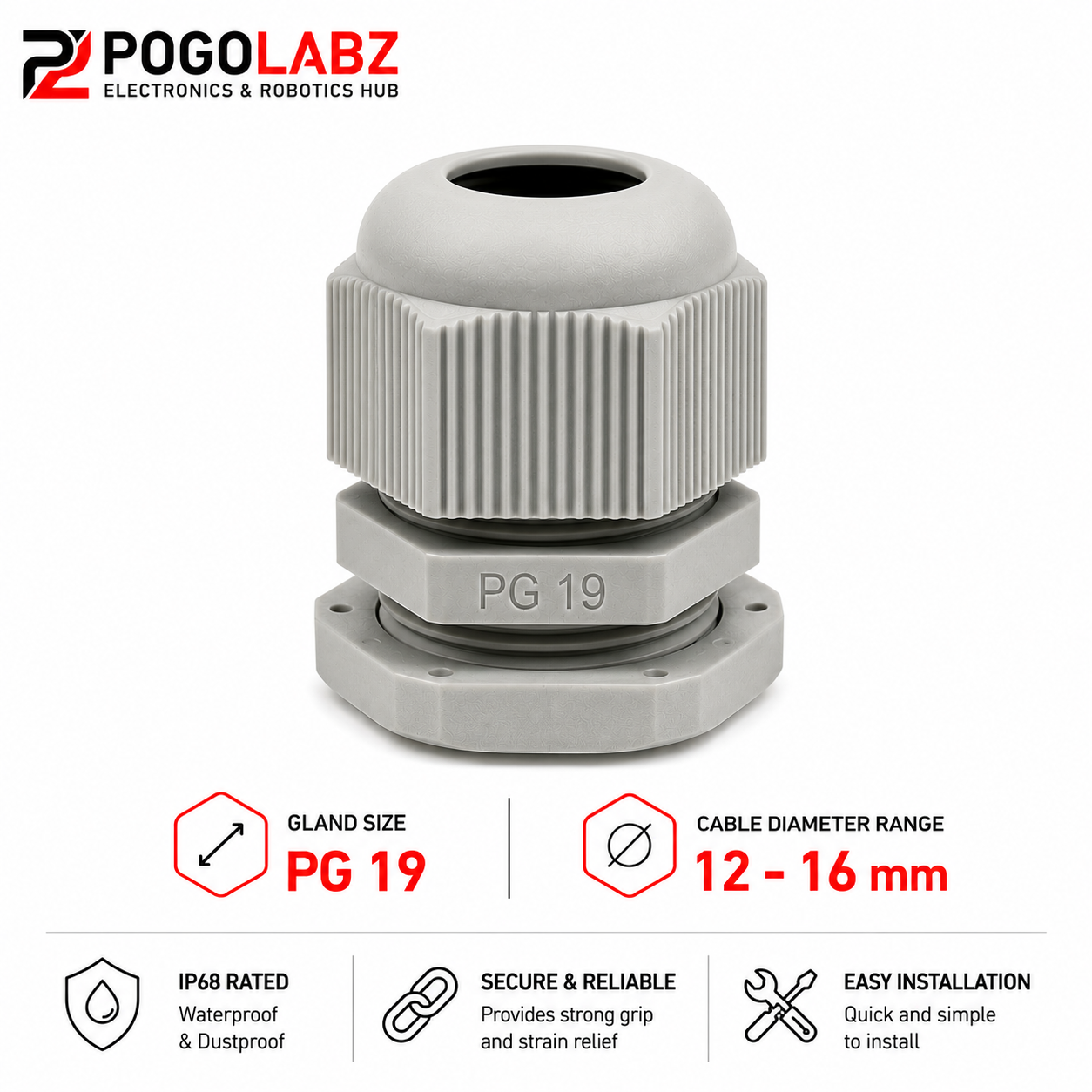

IP68 PG19 Polyamide Cable Gland Nylon | Cable Dia: 12.0mm–15.0mm | Thread: PG19

Description

IP68 PG19 Polyamide Cable Gland is a waterproof, dust-tight cable entry connector made from durable nylon (polyamide) material. It consists of a threaded body, locking nut, sealing ring, and compression gland — the threaded body attaches to the enclosure, the locking nut secures the assembly, the sealing ring creates a watertight seal, and the compression gland grips the cable to prevent pull-out. Lightweight and corrosion-proof, it’s a cost-effective alternative to metal glands for general electrical and enclosure applications.

Features

• IP68 rated for dust-tight and watertight cable entry
• Durable, corrosion-resistant nylon/polyamide construction
• Lightweight compared to metal glands
• PG19 thread size suited for cables 12.0mm–15.0mm
• Includes locking nut and sealing ring for a secure, sealed installation

Applications

• Cable entry sealing for plastic and metal enclosures
• Control panels and junction boxes
• Outdoor and damp-location electrical installations
• General-purpose equipment cable glanding

Usage Note

Ensure the cable outer diameter falls within the 12.0mm–15.0mm range for a proper IP68 seal; tighten the locking nut securely to maintain water and dust ingress protection. Avoid use in high-temperature environments beyond the rated range.

Package Includes

• 1 x IP68 PG19 Polyamide Cable Gland (Threaded Body + Locking Nut + Sealing Ring + Compression Gland)

Product image is for representation only; actual product may vary slightly in packaging or markings.
