LM324 Low Power Quad Op-Amp IC – DIP-14 Package

The LM324 is a low-power quad operational amplifier IC designed for general-purpose analog signal processing. Housed in a 14-pin DIP package, it integrates four independent, high-gain operational amplifiers on a single chip, compensated internally for unity gain. It operates from a single supply (3V to 32V) or a dual supply (±1.5V to ±16V), making it adaptable to a wide range of circuit designs. Its low input bias current, wide bandwidth, and built-in short-circuit protection make it a reliable choice for both hobbyist and professional applications.

Product Details

Features

• Four independent op-amps in a single IC, saving board space
• Wide single-supply voltage range
• Low input bias and offset current for accurate signal handling
• Internally frequency-compensated for unity gain stability
• Built-in short-circuit protection on outputs
• Common-mode input voltage range includes ground

Applications

• Audio pre-amplification and signal conditioning
• Sensor interfacing and instrumentation amplifiers
• Active filters and comparator circuits
• Battery-powered and portable electronic devices
• DC gain blocks and transducer amplifiers

Usage Note

Ensure decoupling capacitors are placed near the supply pins for stable operation, and avoid exceeding the maximum input differential voltage rating.

Package Includes

• 1 x LM324 Quad Op-Amp IC (DIP-14)

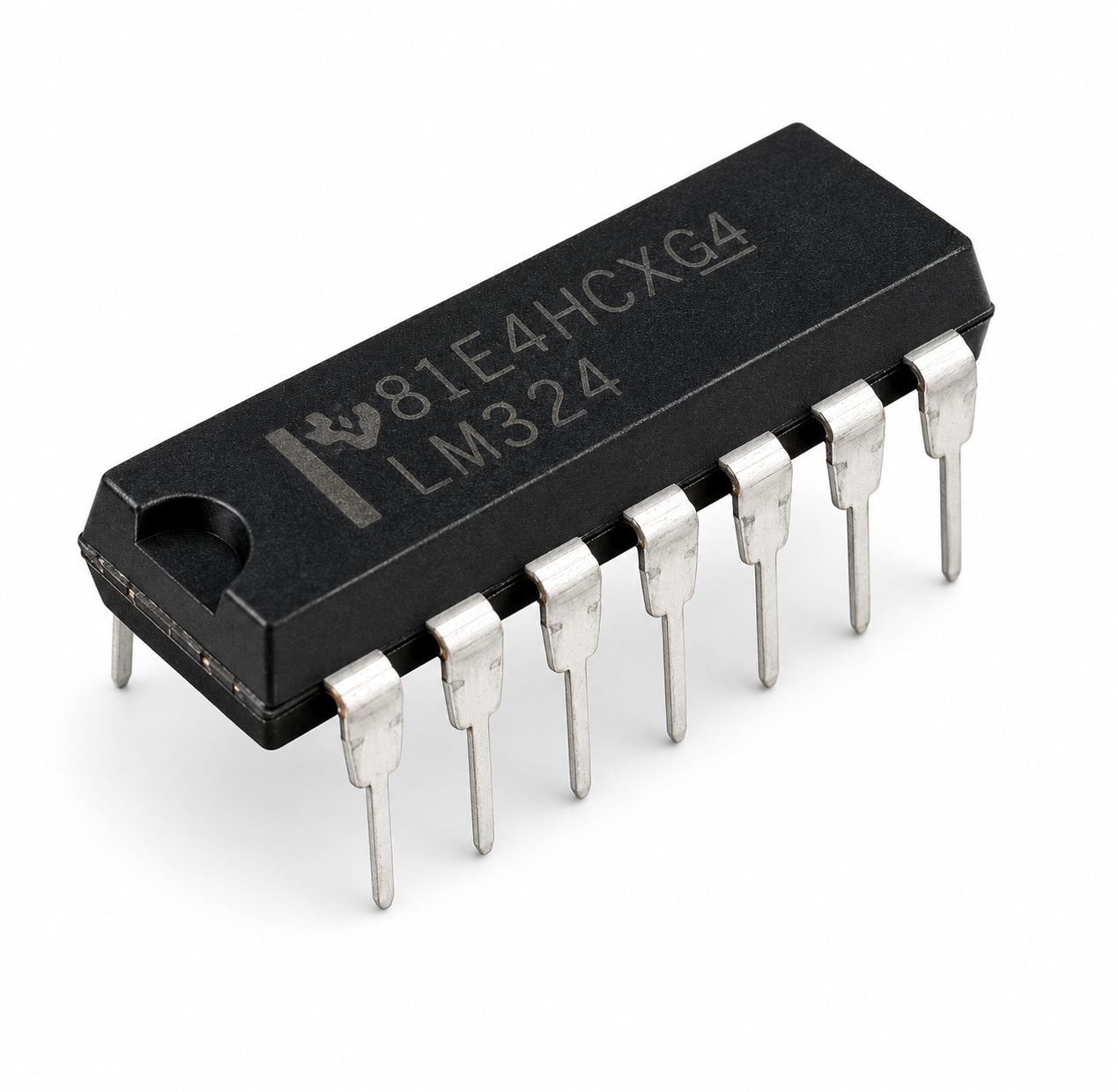

Product image is for representation only; actual product may vary slightly in packaging or markings.
