LM393 Sound Sensor Module

LM393 Sound Detection Sensor Module

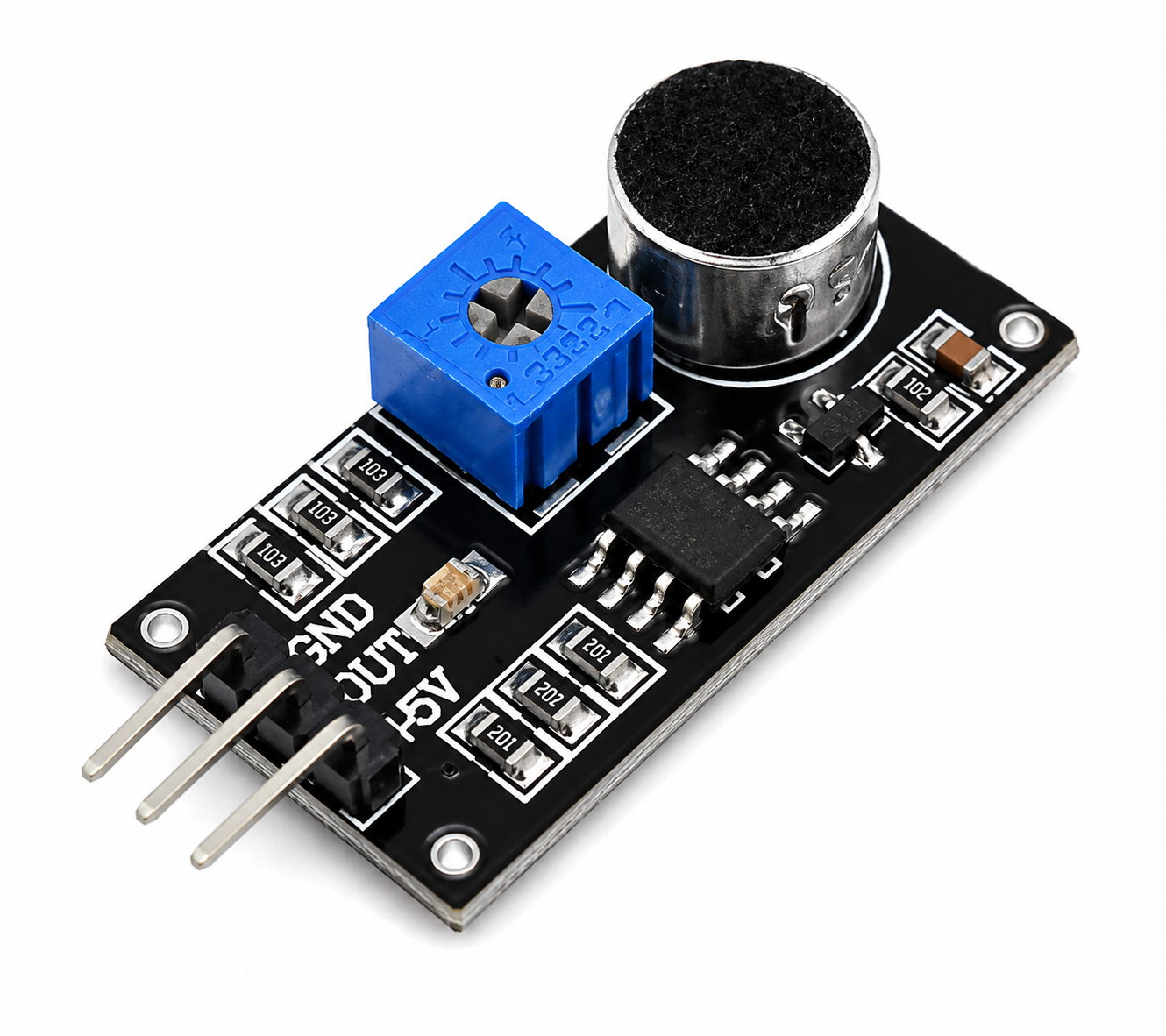

The LM393 Sound Detection Sensor Module detects whether ambient sound has exceeded a set threshold value. Sound is picked up via an onboard microphone and fed into an LM393 comparator (op-amp). The sound level setpoint is adjusted via an onboard potentiometer — when the sound level exceeds the setpoint, the output LED illuminates and the digital output goes LOW. It is widely used with Arduino, ESP32, and Raspberry Pi for sound-triggered switching and detection projects.

Product Details

Features

• Working voltage: DC 3.3–5V
• IC Chip: LM393
• Signal output indication (LED)
• Digital output
• Single channel signal output
• Retaining bolt hole for convenient installation
• Output goes LOW along with signal light when sound is detected

Applications

• Sound-activated switches and relays
• Clap-triggered circuits and toys
• Noise/sound detection for security systems
• Robotics and home automation projects
• Arduino/ESP32/Raspberry Pi based sound detection projects

Usage Note

Adjust the onboard potentiometer to calibrate the sound threshold; the digital output goes LOW along with the LED indicator when sound exceeds the set threshold.

Package Includes

• 1 x LM393 Sound Detection Sensor Module

Datasheet:

https://pogolabz.com/wp-content/uploads/2026/07/LM393_Sound_Detection_Sensor_Module.pdf

Product image is for representation only; actual product may vary slightly in packaging or markings.
