LM7815 15V TO-220 Positive Voltage Regulator IC

LM7815 15V TO-220 Positive Voltage Regulator IC

The LM7815 is a monolithic 3-terminal positive voltage regulator that delivers a fixed +15V output with up to 1A of current. It includes internal current-limiting, thermal shutdown, and safe-area compensation, making it well suited as a fixed regulator across a wide range of local-regulation applications where noise and distribution issues need to be eliminated.

Features

• Fixed +15V regulated output
• Up to 1A maximum output current
• Internal current-limiting and thermal shutdown protection
• Accuracy of approximately ±4%
• Standard TO-220 through-hole package

Applications

• Local voltage regulation in distributed power systems
• Op-amp and analog circuit power supplies
• General-purpose 15V regulated supplies
• Noise elimination in single-point regulation setups

Package Includes

• 1 x LM7815 15V Voltage Regulator IC

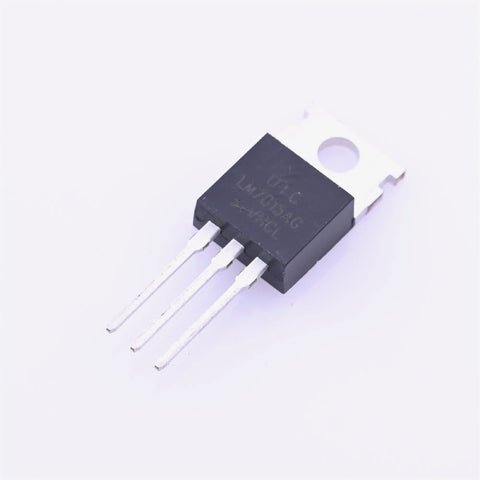

Note: Product images are for illustration purposes only. Actual product may vary slightly in appearance.
