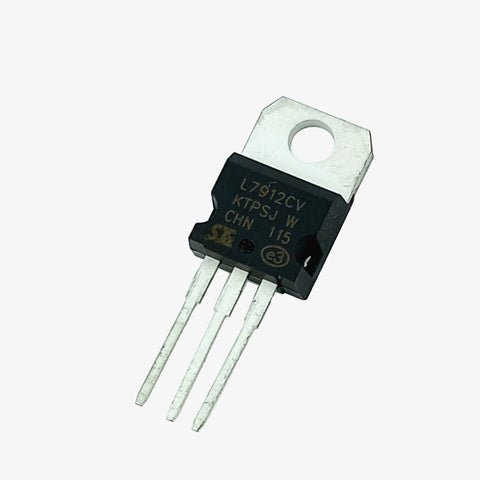

LM7912 12V TO-220 Negative Voltage Regulator IC

LM7912 12V TO-220 Negative Voltage Regulator IC

The LM7912 is a three-terminal voltage regulator IC that outputs a fixed -12V, commonly paired with an LM7812 to build a dual-rail ±12V supply for op-amp and analog circuits. It includes internal current-limiting, safe-area protection, and thermal shutdown to guard against overload conditions, and its low ground-pin current allows the output to be boosted above the preset value with a resistor divider if needed.

Features

• Fixed -12V regulated output
• Peak output current up to 2.2A, average up to 1A
• Internal thermal shutdown and current-limiting protection
• Low ground-pin current for flexible output adjustment
• Standard TO-220 through-hole package

Applications

• Dual-rail ±12V power supplies
• Op-amp and analog circuit negative rail
• General regulated negative-voltage supplies
• Audio and instrumentation circuits

Package Includes

• 1 x LM7912 -12V Voltage Regulator IC

Note: Product images are for illustration purposes only. Actual product may vary slightly in appearance.
