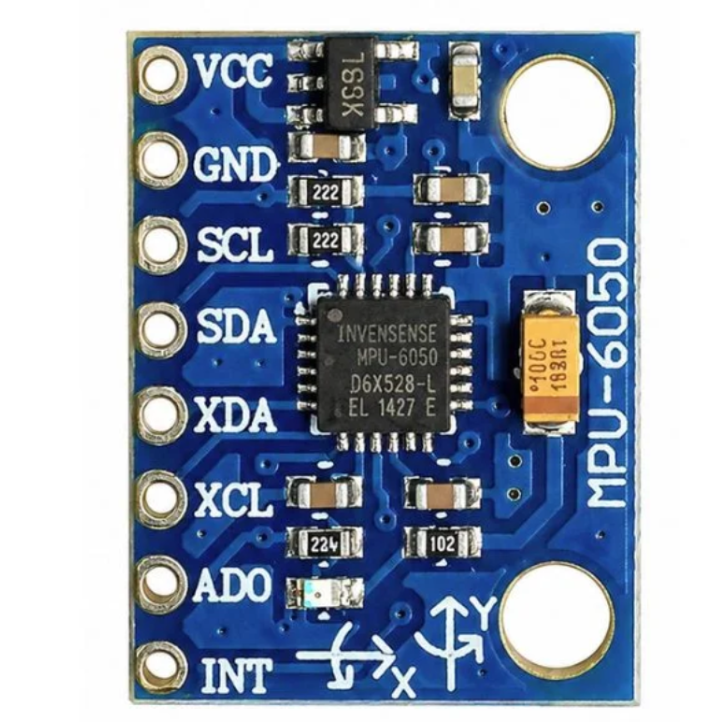

MPU-6050 6-Axis Accelerometer and Gyroscope Module - Image 1
Click to enlarge

    MPU-6050 6-Axis Accelerometer and Gyroscope Module

    SKU: PL-103825

    MPU-6050 6-Axis Accelerometer and Gyroscope Module — Sensor Type: 3-Axis Accelerometer + 3-Axis Gyroscope | Chip: MPU-6050 | Interface: I2C | Resolution: 16-bit

    ₹219.00 INR

    In stock

    In stock

    Compare
    Add to wishlist
    19 People watching this product now!
    • All India delivery

    2-5 Days

    Description

    MPU-6050 6-Axis Accelerometer and Gyroscope Module

    The MPU-6050 module combines a 3-axis accelerometer and 3-axis gyroscope on one board, read over I2C. It is the standard choice for tilt, motion and balancing projects.

    Features

    • 6 degrees of freedom in one chip
    • I2C interface with 16-bit outputs
    • Selectable accelerometer and gyroscope ranges

    Applications

    • Self-balancing robots
    • Drones and flight controllers
    • Motion and tilt detection

    Usage Note

    Use an I2C library such as MPU6050 for Arduino.

    Package Includes: 1 x MPU-6050 6-Axis Accelerometer and Gyroscope Module

    Note: Images are for representation only. Actual product may vary slightly in appearance.

    Specification

    Weight0.005 kg
    Sensor Type3-Axis Accelerometer + 3-Axis Gyroscope
    ChipMPU-6050
    InterfaceI2C
    Resolution16-bit
    Accelerometer Range±2g to ±16g
    Gyroscope Range±250 to ±2000 °/s
    Unit TypeSingle Piece
    BrandGeneric
