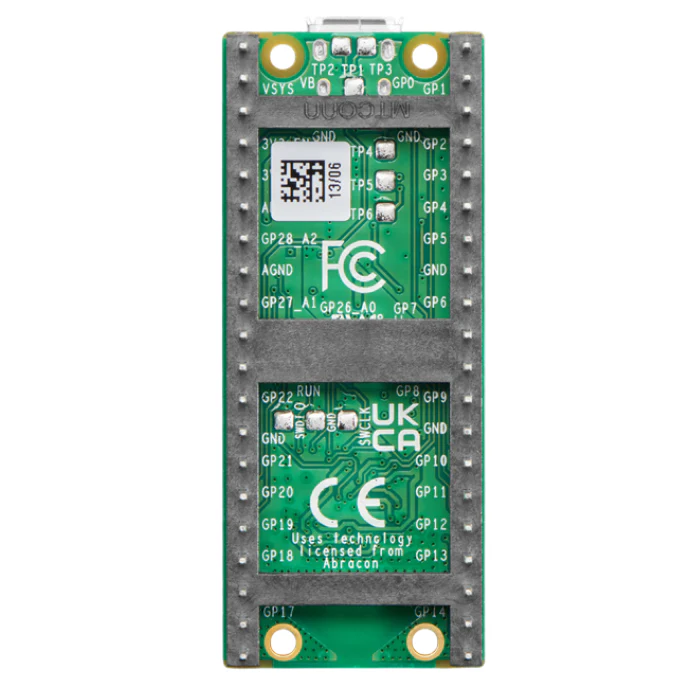

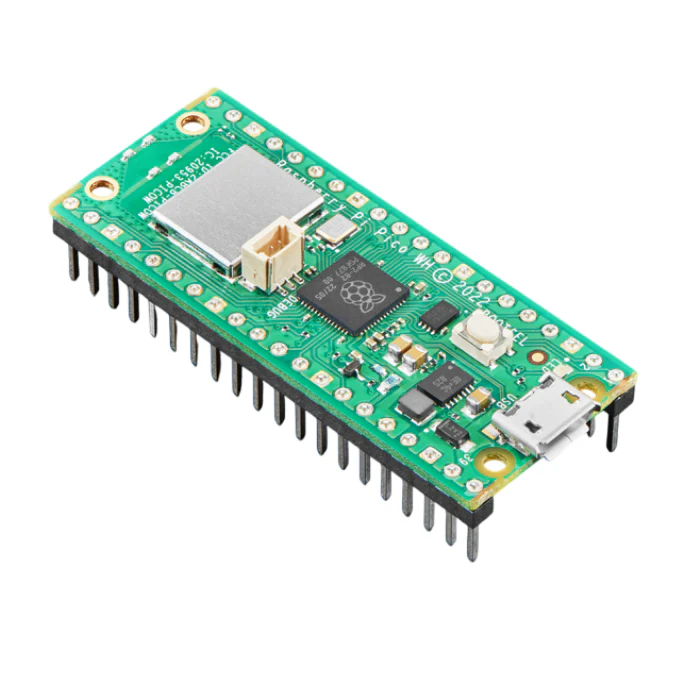

Official Raspberry Pi Pico WH (Soldered)

Description

Official Raspberry Pi Pico WH (Soldered) is a compact, affordable development board powered by the RP2040 microcontroller, designed in-house by Raspberry Pi. Building on the original Pico, the Pico WH adds 2.4GHz wireless connectivity (Wi-Fi and Bluetooth 5.2) via the Infineon CYW43439 chip while keeping the same compact form factor. This “WH” variant ships with pre-soldered male headers, so it’s ready to plug straight into a breadboard or project — no soldering required. It’s an excellent board for learning MicroPython/C, wireless IoT projects, and general embedded development.

Product Details

Features

• RP2040 microcontroller with dual-core ARM Cortex-M0+ at up to 133MHz
• 2MB flash memory and 264KB high-performance SRAM
• Built-in 2.4GHz Wi-Fi (802.11n) and Bluetooth 5.2 connectivity
• Pre-soldered headers — ready for breadboard use out of the box
• Compact 40-pin DIP-style form factor with through-hole and edge castellations
• 26 multi-function GPIO pins including 3 ADC-capable pins
• 3-pin SWD port for debugging
• Comprehensive SDK with software examples and documentation

Applications

• MicroPython/C learning and embedded development
• Wireless IoT projects and sensor networks
• Home automation and smart device prototyping
• Robotics and motor control projects
• Battery-powered portable electronics

Usage Note

Program via MicroPython, CircuitPython, or the C/C++ SDK; connect via Micro USB for initial flashing (hold BOOTSEL while plugging in to enter USB mass-storage mode).

Package Includes

• 1 x Official Raspberry Pi Pico WH (Soldered)

Product image is for representation only; actual product may vary slightly in packaging or markings.
