Arduino Nano

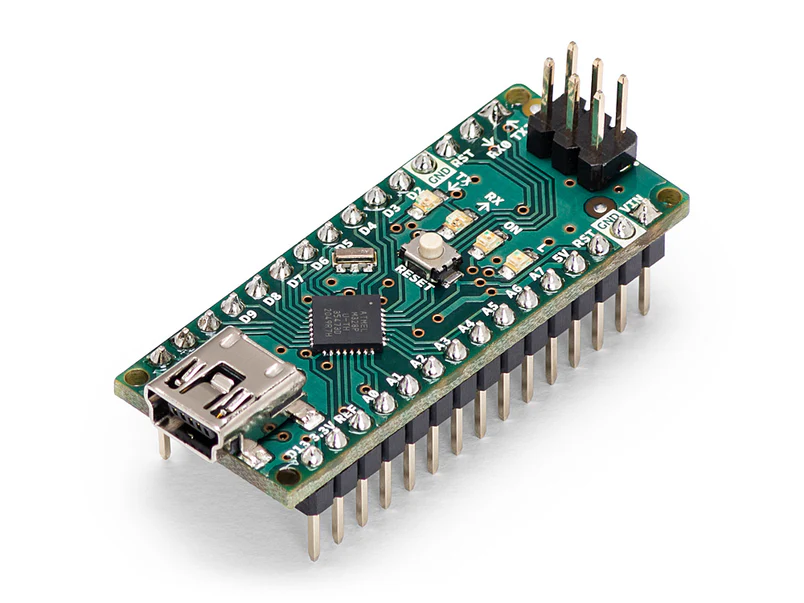

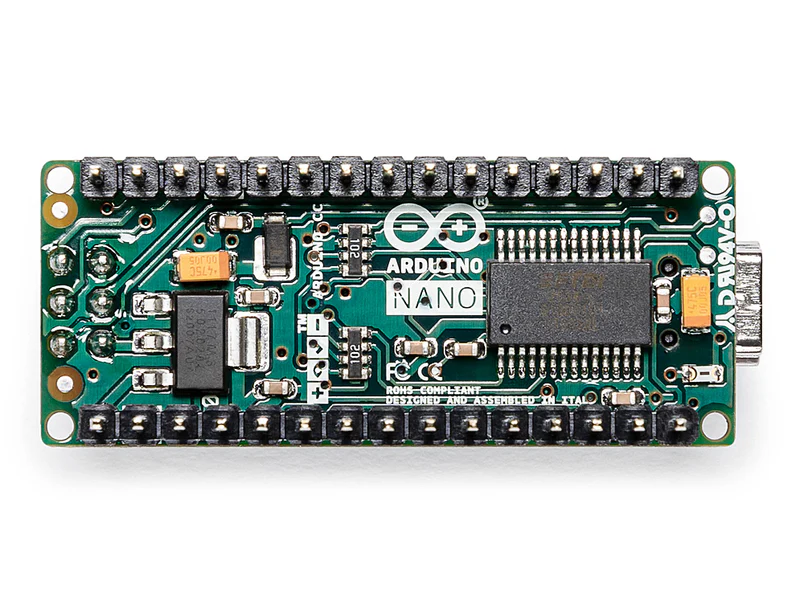

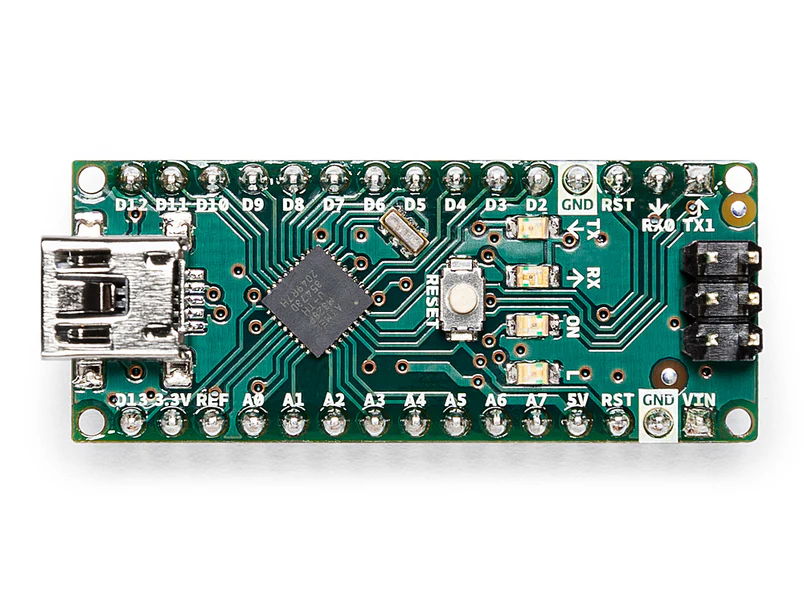

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

Getting Started

Find inspiration for your projects with the Nano board from our tutorial platform Project Hub.

You can find in the Getting Started with Arduino Nano section all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

From the Tutorials section you can find examples from libraries and built-in sketches as well other useful information to expand your knowledge of the Arduino hardware and software.

Pinout

https://docs.arduino.cc/resources/pinouts/A000005-full-pinout.pdf

Datasheet

https://docs.arduino.cc/resources/pinouts/A000005-full-pinout.pdf

Schematic

https://docs.arduino.cc/resources/pinouts/A000005-full-pinout.pdf
