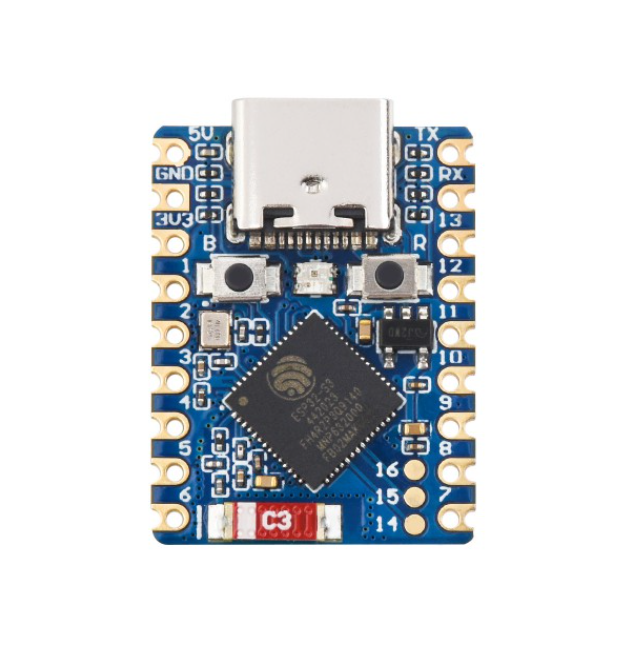

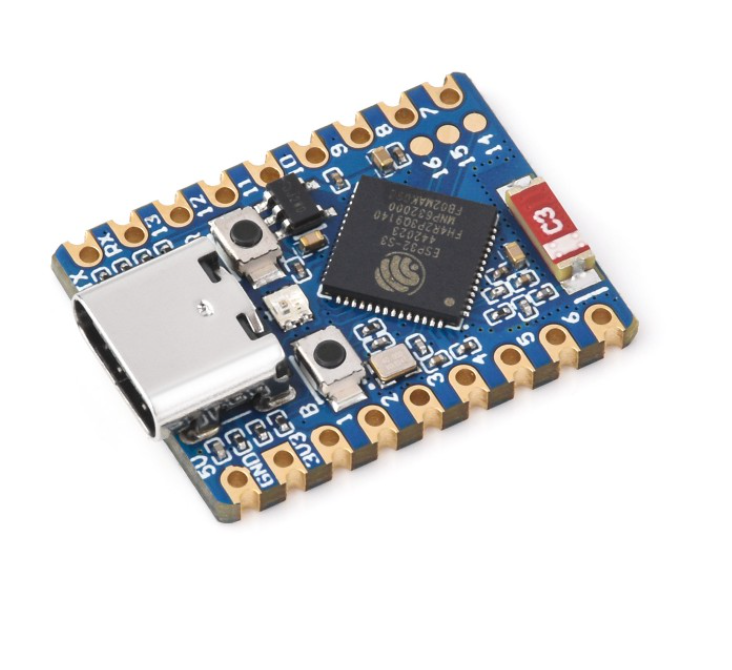

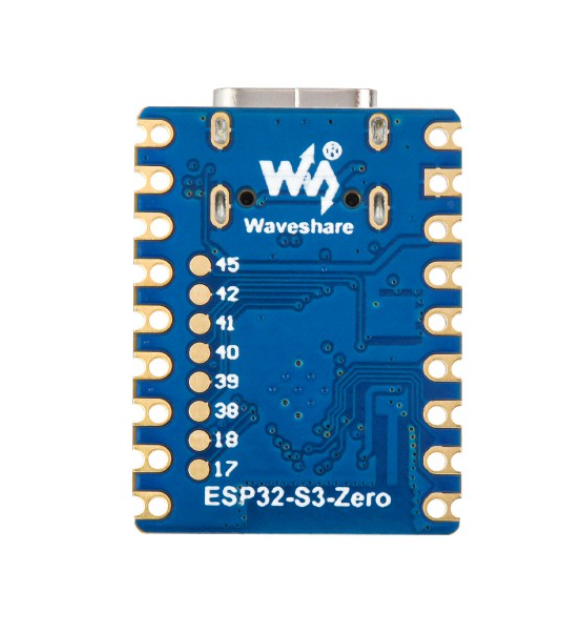

Waveshare ESP32-S3 Mini Development Board

Waveshare ESP32-S3 Mini Development Board

The Waveshare ESP32-S3 Mini Development Board is powered by the ESP32-S3FH4R2 dual-core processor, boasting a 240MHz running frequency. This compact board supports both 2.4GHz Wi-Fi and Bluetooth 5 connectivity. It’s an excellent choice for IoT and wireless communication projects, offering a robust development platform with extensive capabilities, making it suitable for a wide range of applications requiring wireless connectivity, data processing, and control.

Useful link: ESP32-S3-Zero Wiki

Product Details

Features

• Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
• Built-in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
• Castellated module and onboard ceramic antenna, allowing direct soldering to carrier boards
• Flexible clock and independent module power supply settings for low power consumption in different scenarios

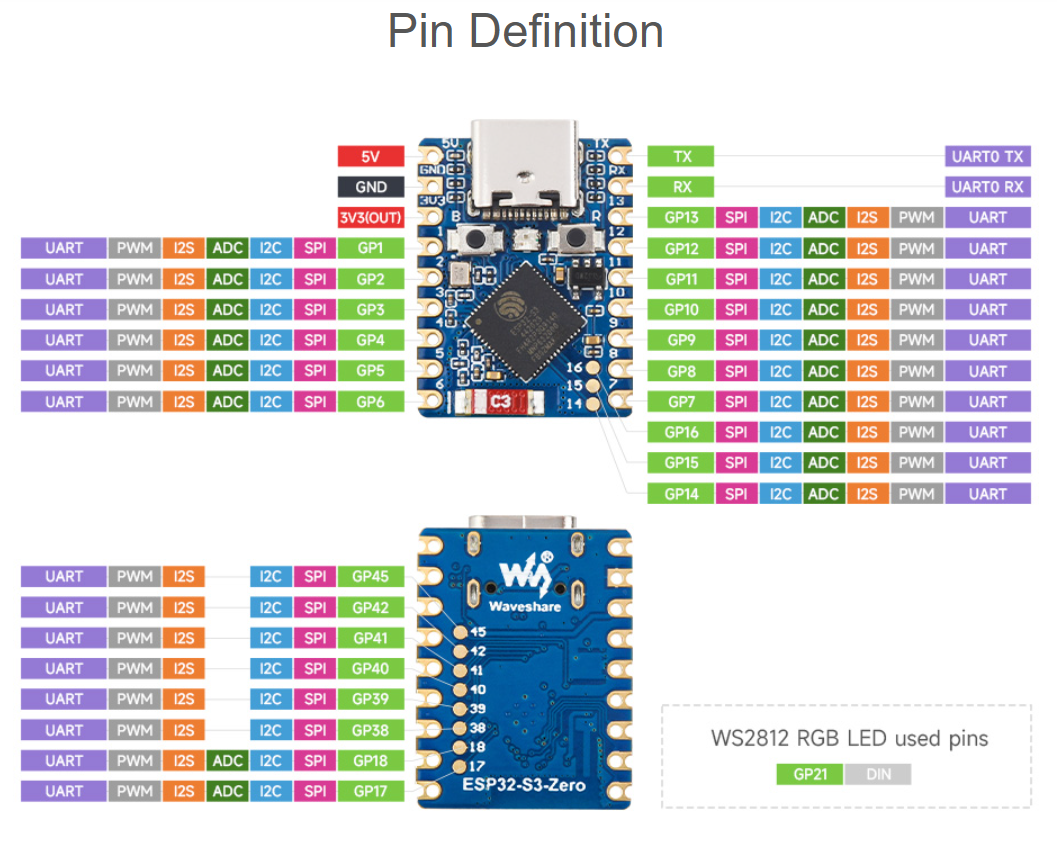

• Integrated USB serial port full-speed controller, 34 × GPIO pins for flexible pin configuration
• 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, and more

Applications

• IoT and wireless communication projects
• Compact embedded systems and edge devices
• Wireless sensor and control networks
• Wearable and space-constrained electronics
• Prototyping wireless-enabled products

Package Includes

• 1 x Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5

Product images are for representation purposes only. Actual product design or packaging may vary slightly.
